Tie rod outer for Case-IH / Fiat / Ford / New Holland tractor models (183462M1 / M183462)

£12.37 £10.31
Availability: In stock
SKU
23/497-95
Add to Compare

Details

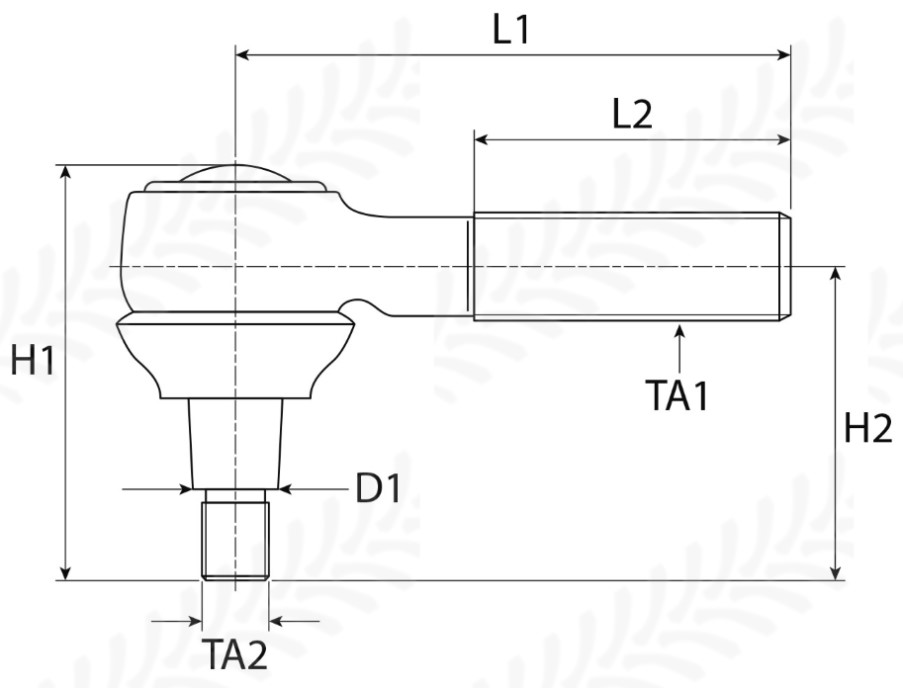

Type
A
Thread type
Metric
Thread - TA1
M20x1.0 RH
Lg (mm)
75
Cone (mm)
18 - 20
Thread - TA2
M16x1.5 RH
L2 (mm)
51
H1 (mm)
88
H2 (mm)
75
TA3
n/a
L4 (mm)
n/a
Angle
n/a
Number of holes
n/a
Hole Ø
n/a
Shipping Weight
0.55 kg

Applications / Compatibility

Applications / Compatibility
Applications
  • Case-IH
    • AVJ Series: AVJ55, AVJ60, AVJ70
    • JX Series: JX55, JX60, JX65, JX70, JX75, JX80, JX85, JX90, JX95
    • JXC Series: JX1060C, JX1070C, JX1075C, JX1085C
    • JXU Series: JX100U, JX1070U, JX1080U, JX1090U, JX1100U, JX70U, JX80U, JX90U
  • Fiat
    • 46 Series: 55-46DT, 60-46DT, 65-46DT
    • 56 Series: 55-56DT, 60-56DT, 65-56DT, 70-56DT
    • 66 Series: 45-66DT, 45-66SDT, 50-66DT, 50-66SDT, 55-66, 55-66DT, 55-66DT LP, 55-66FDT, 55-66SDT, 56-66SDT, 60-66DT, 60-66FDT, 60-66LPDT, 60-66SDT, 65-66DT, 65-66SDT, 70-66DT, 70-66DT HC, 70-66FDT, 70-66LPDT, 70-66SDT HC, 70-66V, 80-66DT, 80-66DT HC, 80-66FDT, 80-66SDT HC
    • 76 Series: 55-76FDT, 55-76VDT, 60-76FDT, 70-76FDT, 70-76LPDT, 80-76FDT
    • 86 Series: 55-86FDT, 60-86FDT, 62-86FDT, 70-86SV, 70-86SVDT, 70-86V, 70-86VDT, 72-86FDT, 72-86LPDT, 82-86FDT, 82-86LP, 82-86LPDT
    • 88 Series: 55-88DT, 60-88DT, 65-88DT
    • 90 Series: 100-90DT, 110-90DT, 55-90 DT, 60-90DT, 65-90DT, 70-90DT, 80-90DT, 85-90DT, 90-90DT
    • 93 Series: 60-93DT, 65-93DT, 72-93DT, 82-93DT, 88-93DT
    • 94 Series: 60-94DT, 65-94DT, 72-94DT, 82-94DT, 88-94DT
    • L Series: L60, L65, L75, L85, L95
    • Someca Series: 1000, 1000 Sup, 1000DT, 1000N, 1000S, 1300DT, 400, 400DT, 420DT, 450* , 450DT, 466DT, 480, 480DT, 500, 500DT, 540, 540DT, 540S, 550, 566, 570, 580, 600, 640, 650, 666, 670, 680, 750, 766, 780, 850, 880, 900
    • Winner Series: F100Dal, F100DT, F100Fino, F110, F110DT, F115, F115DT
  • Ford
    • 10S Series: 3010S, 4010S, 5010S
    • 30 Series: 3430, 3830 (2WD), 3830 (4WD), 3930, 3930H, 3930N, 3930NO, 4030 (2WD), 4030 (4WD), 4130, 4130N, 4130NO, 4230 (2WD), 4430 (2WD), 4430 (4WD), 4630, 4630N, 4630NO, 4630O, 4830, 4830N, 4830O, 5030, 5030O
    • 35 Series: 3435 (2WD), 3435 (4WD), 3935 (2WD), 3935 (4WD), 4135 (2WD), 4135 (4WD), 4635, 4835, 5635, 6635, 7635
    • 40 Series: 5640, 6640, 6640O, 7740, 7740O, 7840, 8240, 8340
    • 56 Series: 5630
  • New Holland
    • T4 Series: T4.100F, T4.105 F, T4.110F, T4.55S, T4.65S, T4.75F, T4.75S, T4.80F, T4.85 F, T4.90F, T4.95 F
    • T4000 Series: T4020, T4030, T4040
    • T4000 Deluxe Series: T4020 Deluxe, T4030 Deluxe
    • T4000F Series: T4030F, T4040F, T4050F, T4060F
    • T6 Series: T6.120
    • TD Series: TD60, TD65B, TD70, TD80, TD90, TD95
    • TD3 Series: F480, TD3.50
    • TD4000F Series: TD4020F, TD4030F, TD4040F
    • TD4F Series: TD4.70F, TD4.80F, TD4.90F
    • TD5 Series: TD5.100, TD5.105, TD5.110, TD5.115, TD5.65, TD5.75, TD5.80, TD5.85, TD5.90, TD5.95
    • TD5000 Series: TD5010, TD5020, TD5030, TD5040, TD5050
    • TDD Series: TD55D, TD60D, TD60D Plus, TD65D, TD70D, TD70D Plus, TD75D, TD80D, TD80D Plus, TD85D, TD90D, TD90D Plus, TD95D, TD95D Plus
    • TDF Series: TD65F, TD75F, TD85F
    • TL Series: TL100, TL70, TL80, TL90
    • TL Brasil Series: TL60 (Brasil), TL65 (Brasil), TL75 (Brasil)
    • TL Exitus Brasil Series: TL60E (Brasil), TL75E (Brasil), TL85E (Brasil), TL95E (Brasil)
    • TLA Series: TL100A, TL70A, TL80A, TL90A
    • TN Series: TN55, TN65, TN70, TN75
    • TNA Series: TN60A, TN70A, TN75A, TN85A
    • TND Series: TN55D, TN65D, TN70D, TN75D
    • TNDA Series: TN60DA, TN70DA, TN75DA, TN85DA
    • TNF Series: TN65F, TN70F, TN75F, TN80F, TN90F, TN95F
    • TNFA Series: TN75FA, TN85FA, TN95FA
    • TNSA Series: TN75SA
    • TS Series: TS100, TS110, TS115, TS80, TS90
    • TS Brasil Series: TS120 (Brasil)
    • TS6000 Series: TS6000 (Brasil), TS6020 (Brasil), TS6030 (Brasil), TS6040 (Brasil)
    • TT Series: TT55, TT65, TT75
    • * refer to engine compatability list
Engine Fitment
  • Fiat
      854
  • Ford
      BSD332, BSD333, BSD442
    • PowerStar Series: PowerStar 4.4, Powerstar 450, Powerstar 450T (Tier1), PowerStar 5.0, PowerStar 5.0T, PowerStar 6.6, Powerstar 675
  • FPT
      NEF 445, NEF 445 (Tier2), NEF 445T (Tier3), NEF 445TA/E (Tier4A), NEF 445TA/M (Tier3)
    • F5 Series: F5C (3.2L) Stage3A, F5D (3.4L) Tier4A
    • NEF Series: N45 ENT (Stage3A)
    • S Series: S8000 (2.9L) Tier3, S8000 (3.9L) Tier3
  • Iveco
      8035.01, 8035.02, 8035.04, 8035.05, 8035.05 (FPT) Tier2, 8035.05 (Tier1), 8035.05 (Tier2), 8035.05 Trem3, 8035.06, 8035.25 (FPT), 8035.25 (Tier1), 8035.25 (Tier2), 8045.02, 8045.04, 8045.05 (FPT), 8045.05 (Tier1), 8045.05 (Tier2), 8045.06, 8045.06 (Tier1), 8045.25 (FPT), 8045.25 (Tier1), 8045.25 (Tier2), 8045.25K, 8055.05, 8065.01, 8065.02, 8065.04, 8065.05, 8065.05R, 8065.06
  • MWM
      D229-3, D229-4, TD229-4
  • Shibaura
      N844LD
  • Someca
      OM CO 3/70, OM CO 3/75, OM CO 3/80, OM CP 3/100
Manufacturer Part No.
HS Code 87088091
