Tie rod outer for Case-IH / Fiat / Ford / New Holland tractor models (3382280M1 / 3616060M1 / 6005019352 / HM3382280)

£23.06 £19.22
Availability: Out of stock
SKU
23/497-97
Add to Compare

Details

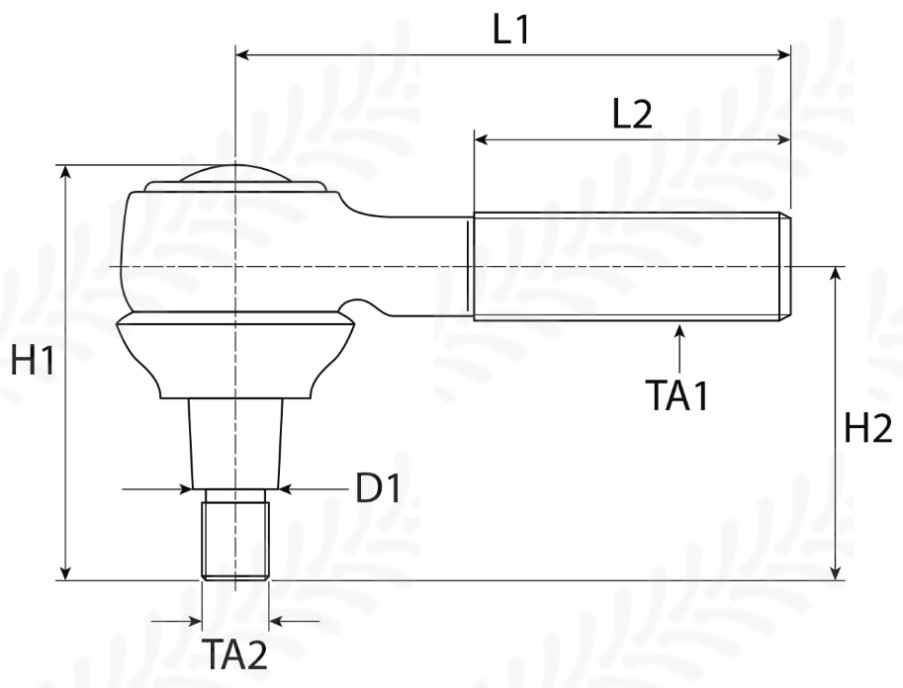

Type
A
Thread type
Metric
Thread - TA1
M20x1.0 RH
Lg (mm)
75
Cone (mm)
16 - 18
Thread - TA2
M14x1.5 RH
L2 (mm)
54
H1 (mm)
84
H2 (mm)
70
TA3
n/a
L4 (mm)
n/a
Angle
n/a
Number of holes
n/a
Hole Ø
n/a
Shipping Weight
0.51 kg

Applications / Compatibility

Applications / Compatibility
Applications
  • Case-IH
    • AVJ Series: AVJ55, AVJ60, AVJ70
    • JX Series: JX80, JX90, JX95
    • JXN Series: JX1070N, JX1075N, JX1095N
    • JXV Series: JX1060V, JX1070V, JX1075V, JX1095V
    • Quantum Series: 105N, 105V, 65V, 75N, 75V, 85N, 85V, 95N, 95V
    • VJ Series: VJ60, VJ70, VJ80
  • Fiat
    • 46 Series: 55-46, 55-46DT, 60-46, 60-46DT, 65-46, 65-46DT
    • 56 Series: 55-56, 55-56DT, 65-56, 65-56DT, 70-56, 70-56DT, 70-56L
    • 66 Series: 35-66, 45-66, 45-66DT, 45-66S, 45-66V, 50-66, 50-66DT, 50-66S, 55-66, 55-66DT LP, 55-66LP, 55-66S, 55-66V, 56-66S, 60-66, 60-66DT, 60-66F, 60-66LP, 60-66S, 65-66, 65-66S, 70-66, 70-66DT, 70-66F, 70-66LP, 70-66S, 70-66V, 80-66, 80-66DT, 80-66F, 80-66S
    • 76 Series: 45-76V, 55-76F, 55-76FDT, 55-76V, 55-76VDT, 60-76F, 60-76FDT, 70-76DT, 70-76F, 70-76LP, 70-76V, 80-76F
    • 86 Series: 50-86SV, 50-86V, 55-86F, 55-86FDT, 55-86SV, 55-86V, 55-86VDT, 60-86F, 60-86FDT, 60-86SV, 60-86V, 60-86VDT, 62-86F, 70-86SV, 70-86SVDT, 70-86V, 70-86VDT, 72-86F, 72-86LP, 82-86DT, 82-86F, 82-86FDT, 82-86LP
    • 88 Series: 55-88, 55-88DT, 60-88, 60-88DT, 65-88, 65-88DT, 70-88, 70-88DT, 80-88, 80-88DT
    • 90 Series: 100-90, 100-90DT, 110-90, 110-90DT, 55-90, 55-90 DT, 60-90, 65-90, 65-90DT, 70-90, 70-90DT, 80-90, 80-90DT, 85-90, 85-90DT, 90-90, 90-90DT
    • 93 Series: 60-93, 60-93DT, 65-93, 65-93DT, 72-93, 72-93DT, 82-93, 82-93DT, 88-93
    • 94 Series: 60-94, 65-94, 65-94DT, 72-94, 72-94DT, 82-94, 82-94DT, 88-94
    • Someca Series: 350DT, 466, 466DT, 500DT, 566, 570, 580, 650, 666, 670, 680, 750, 766, 780, 880, 980
    • Winner Series: F100, F100Dal, F100Fino, F110, F115, F120, F130, F140
  • Ford
    • 30 Series: 3830 (2WD), 4030 (2WD), 4230 (2WD), 4430 (2WD)
    • 35 Series: 3435 (2WD), 3935 (2WD), 4135 (2WD)
  • New Holland
    • T4 Series: T4.105 V, T4.65 V, T4.75 V/N/F, T4.85 V/N/F, T4.90F, T4.95 V
    • T4000N Series: T4030N, T4040N, T4050N, T4060N
    • T4000V Series: T4020V, T4030V, T4040V, T4050V, T4060V
    • TDD Series: TD75D, TD80D, TD80D Plus, TD90D, TD90D Plus, TD95D, TD95D Plus
    • TNN Series: TN65N, TN75N
    • TNNA Series: TN70NA, TN75NA, TN95NA
    • TNV Series: TN55V, TN65V, TN75V
    • TNVA Series: TN60VA, TN70VA, TN75VA, TN95VA
Engine Fitment
  • FPT
      NEF 445TA/M (Tier3)
    • F5 Series: F5C (3.2L) Stage3A, F5D (3.4L) Tier4A
  • Iveco
      8025.02, 8035.02, 8035.04, 8035.05, 8035.05 (FPT) Tier2, 8035.05 (Tier1), 8035.05 (Tier2), 8035.06, 8035.25 (FPT), 8035.25 (Tier1), 8035.25 (Tier2), 8045.02, 8045.04, 8045.05 (FPT), 8045.05 (Tier2), 8045.06, 8045.06 (Tier1), 8045.25 (FPT), 8045.25 (Tier2), 8055.05, 8065.02, 8065.05, 8065.05R, 8065.06, 8065.25, 8065.25S
  • Lombardini
      LDW 1503
  • Someca
      OM CO 3/70, OM CO 3/75
Manufacturer Part No.
HS Code 87088091
