Tie rod outer right for Case-IH / Claas / Renault / David Brown / Deutz / Ford / Same models

RIGHT

£20.24 £16.87

Availability: In stock

SKU

28/497-79

Details/Specification
Make/Model Compatibility
Related Products

Find Similar Products In:

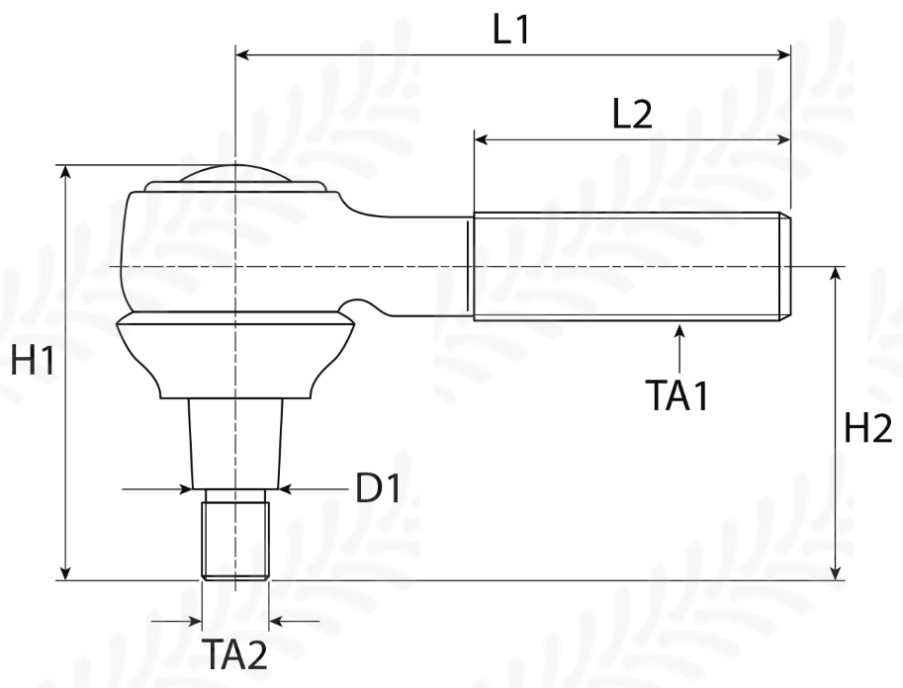

Details

Type: A
Thread type: Metric
Thread - TA1: M22x1.5 RH
Lg (mm): 100
Cone (mm): 16 - 18
Thread - TA2: M14x1.5 RH
L2 (mm): 69
H1 (mm): 82
H2 (mm): 70
TA3: n/a
L4 (mm): n/a
Angle: n/a
Number of holes: n/a
Hole Ø: n/a
Shipping Weight: 0.61 kg

Applications / Compatibility

Applications / Compatibility
Applications	Case-IH 24 Series: 724, 824 33 Series: 433, 533, 633, 733, 833 34 Series: 734 40 Series: 440, 540, 640, 740, 840, 940 44 Series: 644, 744, 844, 844S, 844XL 46 Series: 1046, 1246, 946 53 Series: 553 54 Series: 654 Claas / Renault 500 Series: 551-4 600 Series: 651-4 700 Series: 751-4 David Brown 90 Series: 1290, 1390, 1490 900 Series: 990, 995, 996 Deutz Agrolux Series: Agrolux 80, Agrolux 90 Agroplus Series: Agroplus 100, Agroplus 75, Agroplus 85, Agroplus 95 Ford 10 Series: 2810, 2910, 3910, 3910R, 4110, 4110O, 4610, 4610NO 600 Series: 3600NO, 4600, 4600O, 4600SU Same Antares Series: Antares 100 Centauro Series: Centauro 70 Export, Centauro 70 Special Corsaro Series: Corsaro 70, Corsaro 70 Frutteto, Corsaro 70 Synchro Drago Series: Drago 100, Drago 120 Explorer II Series: Explorer 60 II, Explorer 70 II, Explorer 80 II, Explorer 90 II Explorer II Special Series: Explorer 60SP II, Explorer 70SP II, Explorer 80SP II Leone Series: Leone 70, Leone 75 Leopard Series: Leopard 85, Leopard 85 Export, Leopard 90 Turbo Saturno Series: Saturno 80, Saturno 80 SY Silver Series: Silver 100.4, Silver 100.6, Silver 80, Silver 90
Engine Fitment	David Brown AD4/47, AD4/55, AD4/55T Deutz FL900 Series: BF 4L 913, F 4L 913 FM1000 Series: BF 4M 1012 E, BF 4M 1012 EC, BF 6M 1012 E Ford BSD326, BSD329, BSD332, BSD333 I.H. D155, D179, D206, D239, D246, D268, D310, D358, DT358 MWM D226-3, D226-4, D227-4 Same 1000.3A, 1000.4A, 1000.4A1, 1000.4A4, 1000.4AT, 1000.4ATI, 1000.6A, 1002V, 1004P, 1054P, 1054PT, 1056P, 984L, 984P, 986L, DA1004 Volvo-BM 1054
Manufacturer Part No.	Case-IH: 098854, 3141 530R91, 3141530R91, 83930053, 8514037, B514029, B514037, CAR98854, IH3141530, K965270 Claas / Renault: 6000198854, RR198854 CNH: 098854, 3141530R91, B514029, B514037, CAR98854 David Brown: 988854, D965270, K965270 Deutz (FR): 0.010.0487.4, 0.135.4345.4/10, 1004874, 1354 3454, 13543454, 1354345410 Deutz (KHD): 0.010.0487.4, 0.135.4345.4/10, 1004874, 1354 3454, 13543454, 1354345410 Faucheux: H3141530R91 Fiat: 83930053 Ford: 098854, 83930053, CAR98854 INT Harvester: 3141530R91, H3141530R91 Lamborghini: 0.135.4345.4/10, 1354345410 Lamborghini tractors: 0.135.4345.4/10, 1354 3454, 13543454, 1354345410 Landini: 3141530R91, K965270, MC3141530R91, MCK965270 Massey Ferguson: S63208 Mc Cormick: K965270 New Holland: 098854, 3141530R91, 83930053, 8930053, B514029, B514037, CAR98854, H3141530R91, K965270 Renault (FR): 6000198854, RR198854 Same: 0.010.0487.4, 0.135.4345.4/10, 1004874, 13543454, 1354345410 Steyr: 192430735
HS Code	87088091
