Tie rod outer for Massey Ferguson 100 / 200 / 200 (Brasil - South Africa) / 300 / 500 / 600 series

£17.32 £14.43
Availability: In stock
SKU
30/497-5

Details

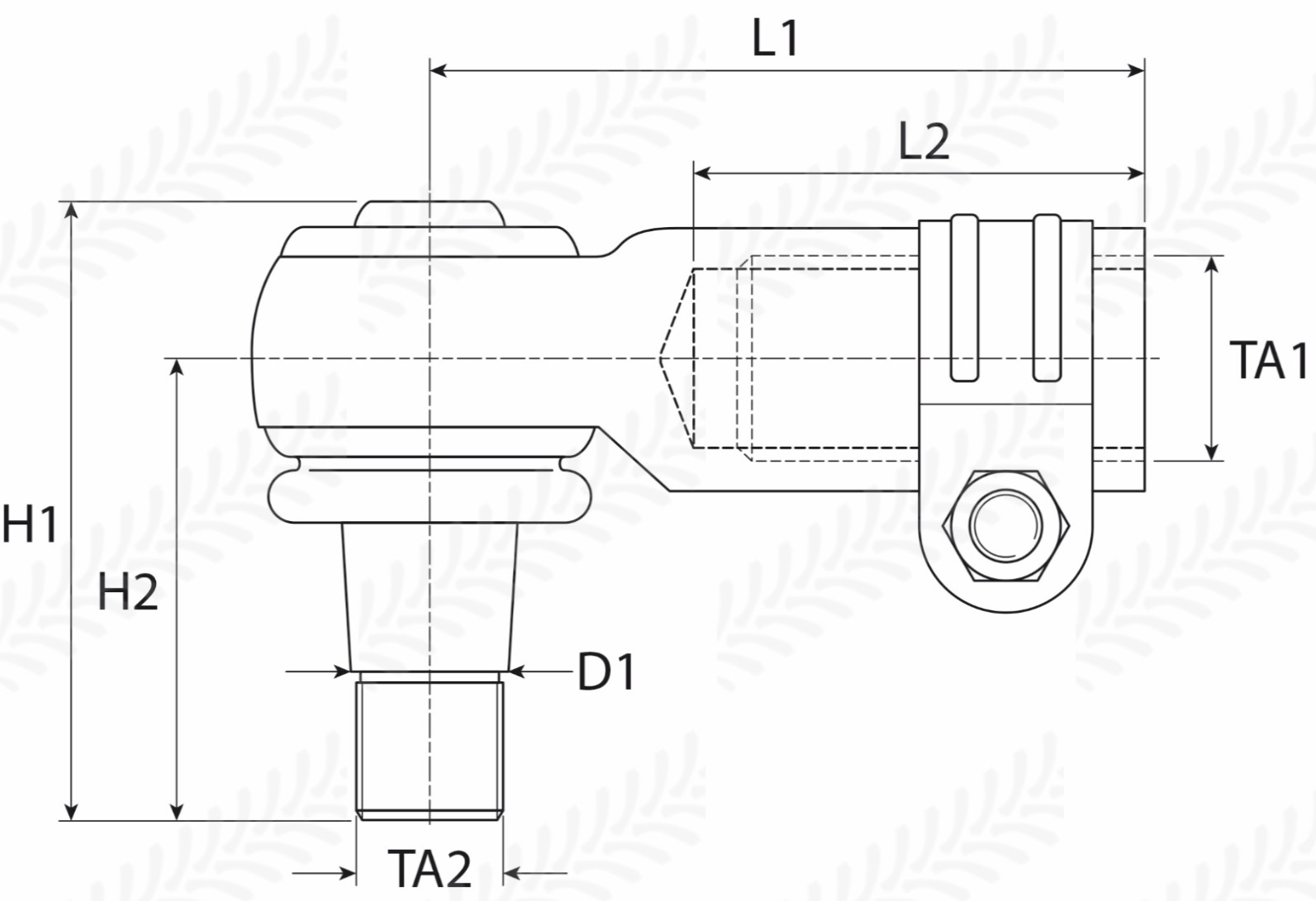

Type
E
Thread type
Metric
Thread - TA1
Ø 19
Lg (mm)
385
Cone (mm)
17.5 - 19.1
Thread - TA2
M16x1.5 RH
L2 (mm)
355
H1 (mm)
82
H2 (mm)
75
TA3
n/a
L4 (mm)
n/a
Angle
n/a
Number of holes
n/a
Hole Ø
n/a
Shipping Weight
1.23 kg

Applications / Compatibility

Applications / Compatibility
Applications
  • Massey Ferguson
      50* , 50B* , 50B MKII, 565
    • 100 Series: 165, 165MKIII, 168, 175, 175S, 178, 185, 188
    • 200 Series: 265, 265S (Turkey), 275, 275 (Turkey), 285, 285S (Turkey), 290, 290 (Turkey)
    • 200 (Brasil - South Africa) Series: 265
    • 300 Series: 375E, 390E
    • 500 Series: 565, 575, 590
    • 600 Series: 675, 690
  • * refer to engine compatability list
Engine Fitment
  • Maxion Intl. Brasil
      A4.236
  • Perkins
    • 4.203 Series: AD4.203
    • 4.236 Series: 4.41, A4.212, A4.236, A4.248
    • 6.354 Series: AT6.354.4
Manufacturer Part No.
HS Code 87088091
