Harnessing Energy: Understanding the Dynamo's Role in a Tractor

The dynamo, a fundamental component in the anatomy of a tractor, operates as a vital cog in the machine's energy system. This article aims to demystify the workings of a tractor dynamo, illustrating how this ingenious device plays a crucial role in transforming mechanical energy into electrical power. At the heart of a tractor's electrical system, the dynamo is responsible for powering various essential components and accessories, ranging from lighting to advanced control systems. We will explore the principles behind the dynamo's operation, its integration into the tractor's mechanical framework, and the significant impact it has on enhancing the tractor's efficiency and capabilities in modern agriculture.

How a dynamo works

A dynamo is a device that converts mechanical energy into electrical energy, primarily through the principles of electromagnetic induction. At its core, a dynamo consists of a rotating coil of wire situated within a magnetic field. When this coil rotates, the magnetic field induces an electric current within the coil. This process is based on Faraday's law of electromagnetic induction, which states that a change in the magnetic environment of a coil of wire will cause a voltage (or electromotive force) to be induced in the coil. The rotation necessary for this process is typically provided by the motion of the machinery to which the dynamo is attached, such as a tractor's engine. As the engine runs, it drives the dynamo, converting the engine's mechanical energy into electrical energy. This electricity is then used to power various components of the tractor, such as lights, indicators, and other electronic systems, making the dynamo an essential component in the electrical system of the tractor.

This table encapsulates the fundamental concepts and components integral to the operation of a dynamo

Term	Description
Electromagnetic Induction	The process by which an electric current is induced in a conductor when it is exposed to a changing magnetic field.
Coil	A loop or series of loops of conducting wire that generates a magnetic field when an electric current passes through.
Magnetic Field	An invisible field around a magnetic material or a moving electric charge within which the force of magnetism acts.
Electric Current	A flow of electric charge carried by moving electrons in a wire.
Voltage (Electromotive Force)	The electric potential difference between two points, which drives the flow of current.
Mechanical Energy	Energy possessed by an object due to its motion or position; in the case of a dynamo, this comes from the engine.
Electrical Energy	Energy carried by moving electrons in an electric conductor.
Rotation	The action of rotating around an axis or center, as in the spinning of the dynamo's coil.
Armature	The rotating coil or coils of a dynamo or electric motor.
Commutator	A device used in dynamos and electric motors to periodically reverse the direction of current in a coil.

Fault finding a tractor's dynamo

Fault finding on a tractor's dynamo involves a systematic approach to diagnose and rectify issues affecting its performance. Here is a step-by-step guide to help you troubleshoot common problems:

• Visual Inspection: Check for any visible signs of damage like cracks, burns, or corrosion on the dynamo and its connections. Ensure that the drive belt connecting the dynamo to the engine is in good condition and properly tensioned.
• Check Electrical Connections: Inspect all electrical connections for tightness and cleanliness. Loose or corroded connections can cause issues. Look for any frayed or damaged wiring that may need replacing.
• Battery Inspection: Verify that the battery is in good condition and properly charged. A faulty battery can affect the dynamo’s performance. Check the battery terminals for corrosion and ensure they are clean and secure.
• Voltage Output Test: Use a multimeter to measure the voltage output of the dynamo. Typically, it should be around 14 volts when the engine is running. If the voltage is too low or too high, it could indicate a problem with the dynamo’s internal components.
• Field Coil Check: Inspect the field coils inside the dynamo for signs of damage or wear. Use a multimeter to check the resistance of the field coils. An open circuit or short circuit in the coils indicates a fault.
• Brushes and Commutator: Examine the condition of the brushes and the commutator. Worn brushes or a dirty commutator can hinder performance. Clean the commutator with fine sandpaper and ensure the brushes make good contact.
• Grounding Check: Ensure that the dynamo is properly grounded. A poor ground connection can lead to charging issues.
• Regulator Check: If the dynamo uses an external voltage regulator, check its condition. A faulty regulator can cause overcharging or undercharging.
• Bench Testing: If the above steps don’t reveal the problem, consider removing the dynamo for bench testing. This involves running the dynamo outside of the tractor to check its performance under controlled conditions.
• Consult the Manual: Refer to the tractor’s service manual for specific troubleshooting tips related to your model’s dynamo.

Professional Assistance: If you are unable to diagnose or fix the issue, it’s advisable to seek help from a professional mechanic who specializes in tractors. Remember, safety is paramount. Always disconnect the battery before working on the dynamo and wear appropriate protective gear. If you are not comfortable or experienced with electrical systems, it’s best to consult a professional.

The dynamo broken down: key components

1. Armature: The rotating part of the dynamo. It typically consists of a coil or a series of coils of wire through which the current is induced.
2. Field Coils: These create a magnetic field within the dynamo. They can be located on the stator (stationary part) or the rotor (rotating part), depending on the design.
3. Commutator: A rotary switch in the dynamo that periodically reverses the direction of current between the rotor and the external circuit. This helps in converting the alternating current (AC) generated within the armature into direct current (DC).
4. Brushes: These are stationary conductive components that transfer electrical current between the moving commutator and the external circuit.
5. Drive Belt: Connects the dynamo to the engine, allowing the engine’s mechanical energy to be converted into electrical energy by the dynamo.
6. Rotor: The rotating part of the dynamo, which includes the armature and sometimes the field coils, depending on the type of dynamo.
7. Stator: The stationary part of the dynamo, which may contain field coils or permanent magnets to generate a magnetic field.
8. Voltage Regulator: Though not a part of the dynamo itself, it's often associated with the dynamo system. It regulates the voltage output to prevent overcharging of the battery and electrical system.

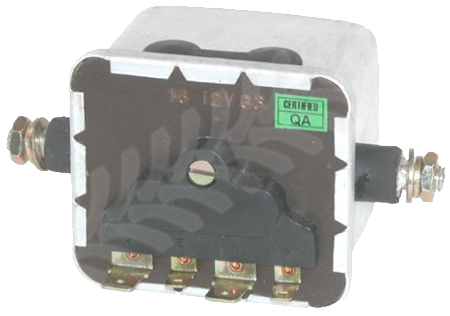

Don't forget about the regulator!

When connected to a dynamo on a tractor, a regulator, often termed a voltage regulator, plays a crucial role in the electrical charging system. Its primary function is to maintain the correct voltage level within the tractor's electrical system. This regulation is essential for several reasons:

Battery Charging Control: The regulator ensures that the dynamo charges the tractor’s battery at the correct voltage. Without it, the dynamo could overcharge the battery, leading to reduced battery life or even damage.

Protecting Electrical Components: Modern tractors have various sensitive electrical components and circuits. The regulator keeps the voltage within safe limits to prevent damage to these components.

Consistent Electrical Performance: By maintaining a stable voltage output from the dynamo, the regulator helps in ensuring consistent performance of the tractor’s electrical systems, such as lighting, instrumentation, and electronic controls.

Compensating for Load Changes: The regulator adjusts the dynamo’s output in response to changes in the electrical load and engine speed. This adaptability is important for the efficient operation of the tractor under varying working conditions.

Time to upgrade? Dynamo versus Alternator!

Comparing a dynamo and an alternator, both of which are used in vehicles (including tractors) for generating electrical power, reveals several key differences in their operation, construction, and performance:

Principle of Operation:

• Dynamo: Generates direct current (DC) by converting mechanical energy into electrical energy. The commutator in the dynamo is used to convert the alternating current (AC) produced internally to DC.
• Alternator: Produces alternating current (AC), which is then converted to DC using diodes in a rectifier. It operates on the principle of electromagnetic induction, similar to the dynamo, but is designed to produce AC directly.

Construction:

• Dynamo: Typically has a stationary magnetic field and a rotating armature (coil). It uses a commutator and brushes for current conversion and transfer.
• Alternator: Contains a rotating magnetic field (rotor) and stationary armature (stator). This design allows for higher speed operation and eliminates the need for a commutator.

Efficiency:

• Dynamo: Less efficient, especially at low engine speeds. Its output decreases significantly at lower RPMs.
• Alternator: More efficient, capable of generating more power even at lower engine speeds. It provides a consistent output over a wide range of speeds.

Size and Weight:

• Dynamo: Generally larger and heavier for a given output capacity compared to an alternator.
• Alternator: More compact and lighter for the same power output, making it preferable in modern vehicle designs.

Output:

• Dynamo: Limited in its maximum output; suitable for vehicles with fewer electrical demands.
• Alternator: Capable of producing higher output, which is essential for modern vehicles with extensive electrical needs.

Maintenance:

• Dynamo: Requires more maintenance due to wear and tear on the commutator and brushes.
• Alternator: Lower maintenance, as it lacks a commutator and uses slip rings, which have less wear.

Adaptability:

• Dynamo: Once the standard in vehicles but has largely been replaced by alternators in modern designs.
• Alternator: Adaptable to modern vehicle electrical systems, including those requiring more power for electronics, lighting, and other accessories.

In summary, while dynamos were common in older vehicles, alternators have largely superseded them in modern automotive design due to their higher efficiency, greater power output, and lower maintenance requirements.
